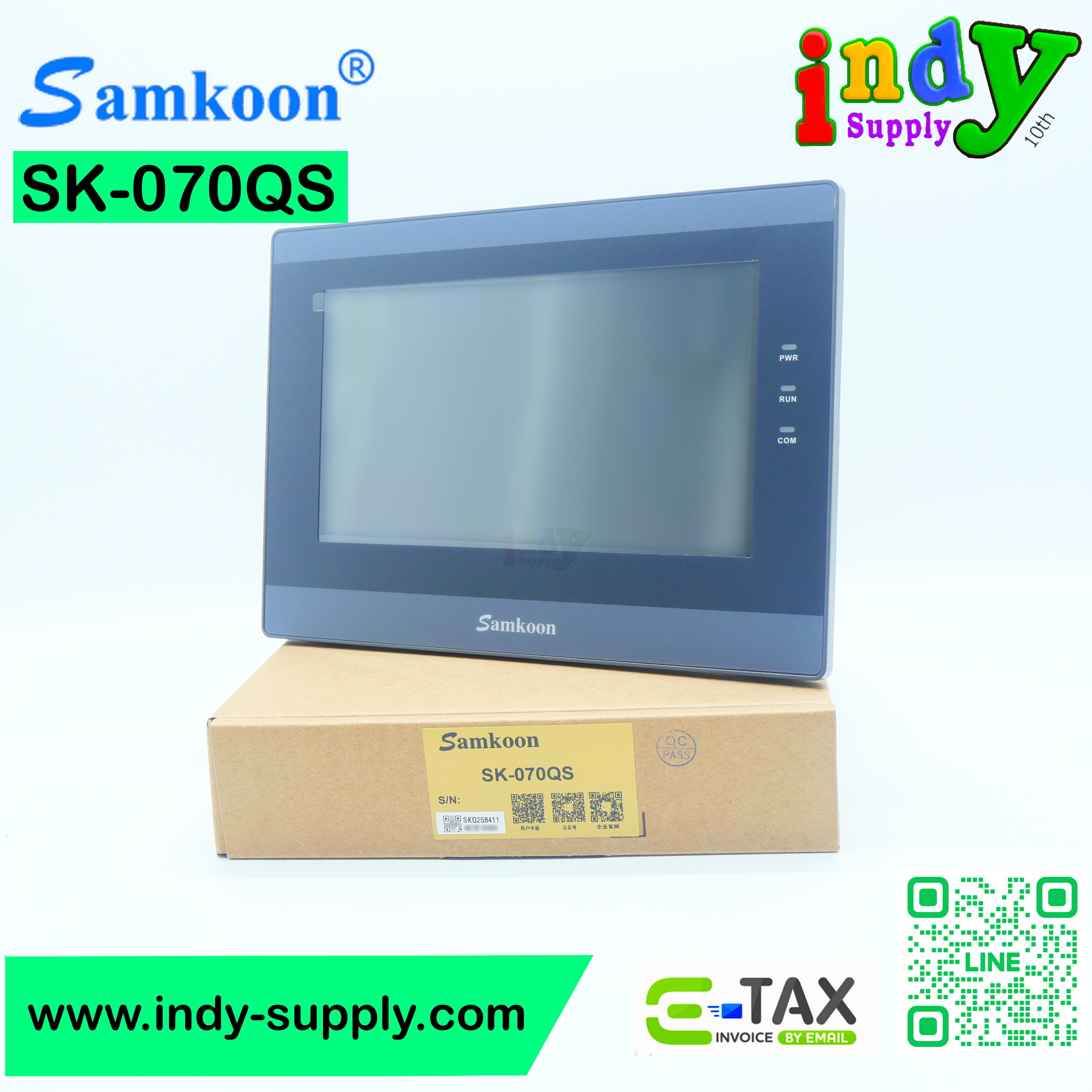

SAMKOON SK-070QS HMI 7"

Structural Specifications:

• Outer Dimensions: 203 x 145 x 35 mm
• Mounting Hole Dimensions: 192 x 138 mm
• Weight: 700 grams
• Housing Material: ABS+PC engineering plastic

Display:

• Display Size: 7″ (16:9)
• Resolution: 800 x 480 pixels
• Touch Panel: 4-wire high-precision touch panel
• Display Colors: 16.77 million
• Backlight: LED
• Contrast Ratio: 400:1
• Brightness: 450 cd/m²

Product Features/Certifications:

• Memory: 128MB Flash + 128MB DDR3
• CPU: Cortex A7 1GHz, dual-core
• Voltage Withstand Test: 1000V AC for 1 minute
• Electrostatic Test: 4 levels of ±8kV
• FCC Compatibility: Complies with FCC Class A
• CE Certification: Complies with EN55032 and EN55035 standards
• Protection Rating: IP65 (front panel)
• Power/Interfaces:
  • Power Supply: DC 12-24V ±15%
  • Power Consumption: 4W
  • Serial Interfaces: COM1 (RS232), COM2 (RS485/RS422), COM3 (RS485)
  • USB Download Port: Yes
  • USB Flash Drive Port: Yes
  • SD Card: No
  • Ethernet Port: Yes
  • CAN: No
  • None Option Wifi

Operating Environment:

• Operating Temperature: -20°C to 55°C (no freezing)
• Operating Humidity: 5% to 95% RH (non-condensing)
• Shock Resistance: 10-25Hz (XYZ direction, 2G for 30 minutes)

Programming Software:

• Programming Software: SKTOOL 7.0
