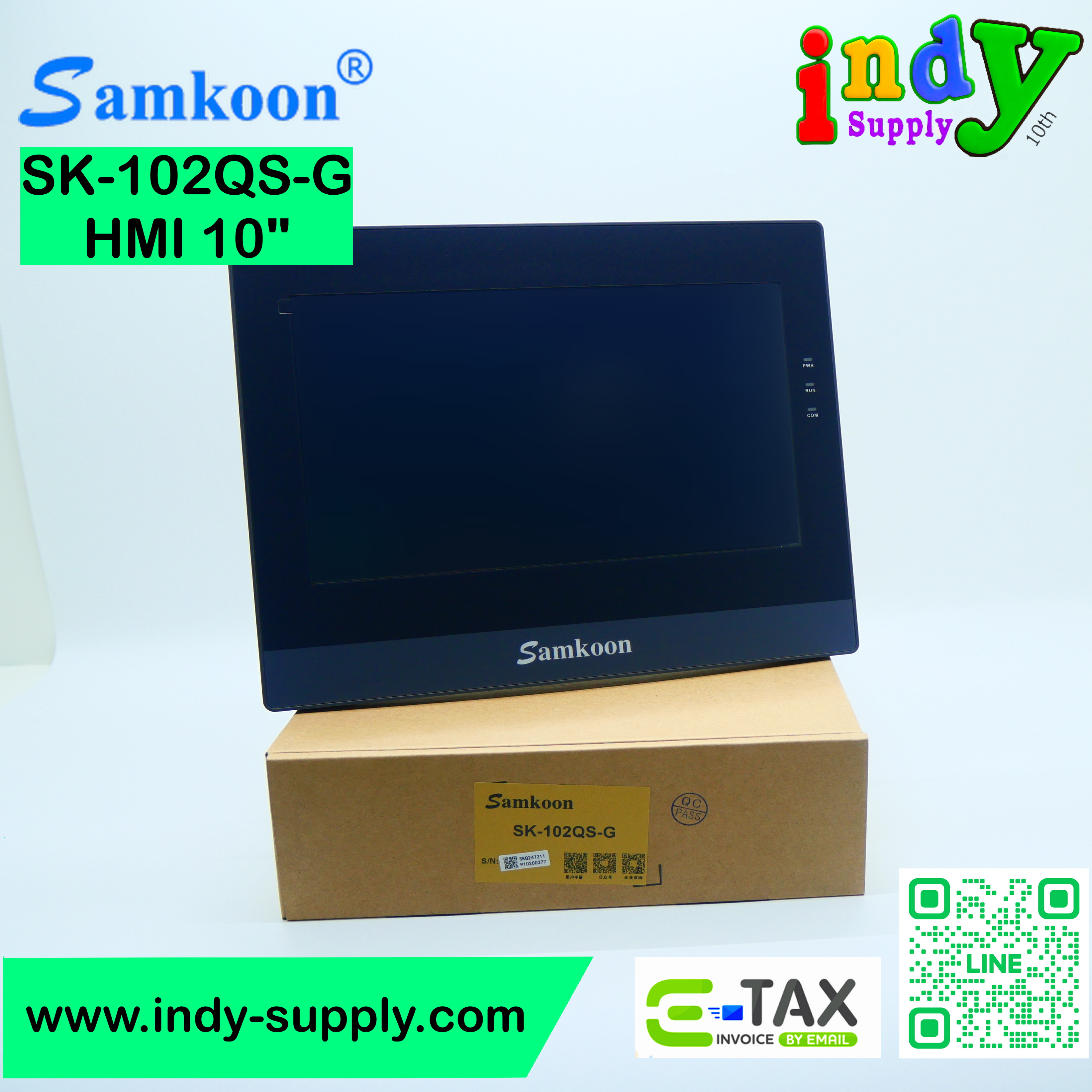

SAMKOON SK-102QS-G HMI 10.2"

• • Outer Dimensions: 273 × 211 × 40 mm
  • Mounting Hole Dimensions: 259 × 201 mm
  • Weight: 1050g

Casing Material:

• • High-quality engineering plastics ABS+PC

Display:

• • Display Size: 10.2″ (16:9)
  • Resolution: 1024 × 600 pixels
  • Touch Panel: 4-wire high-precision touchscreen
  • Display Colors: 16.7 million
  • Backlight: LED
  • Contrast Ratio: 400:1
  • Brightness: 450 cd/㎡

Product Features/Certifications:

• • Memory: 128MB Flash + 128MB DDR3
  • CPU: Dual-core Cortex A7 1GHz
  • Voltage Endurance Test: 1000V AC for 1 minute
  • Electrostatic Test: ±6kV
  • FCC Compatibility: Complies with FCC, Class A
  • CE Certification: Complies with EN55032 and EN55035 standards
  • Protection Level: IP65 (front panel)

Power/Interfaces:

• • Power Supply: DC 12-24V ±15%
  • Power Consumption: 7W
  • Serial Interfaces: COM1: RS232, COM2: RS485/422, COM3: RS485
  • USB Download Port: Yes
  • USB Port: Yes
  • SD Card: No
  • Ethernet Port: Yes
  • CAN: No
• Network Connectivity:
  • WiFi: Yes (optional)
  • 3G: No
  • Ethernet: Yes
  • 4G: Yes (optional)

โปรแกรมสำหรับเขียน/Upload/Download

DOWNLOAD
