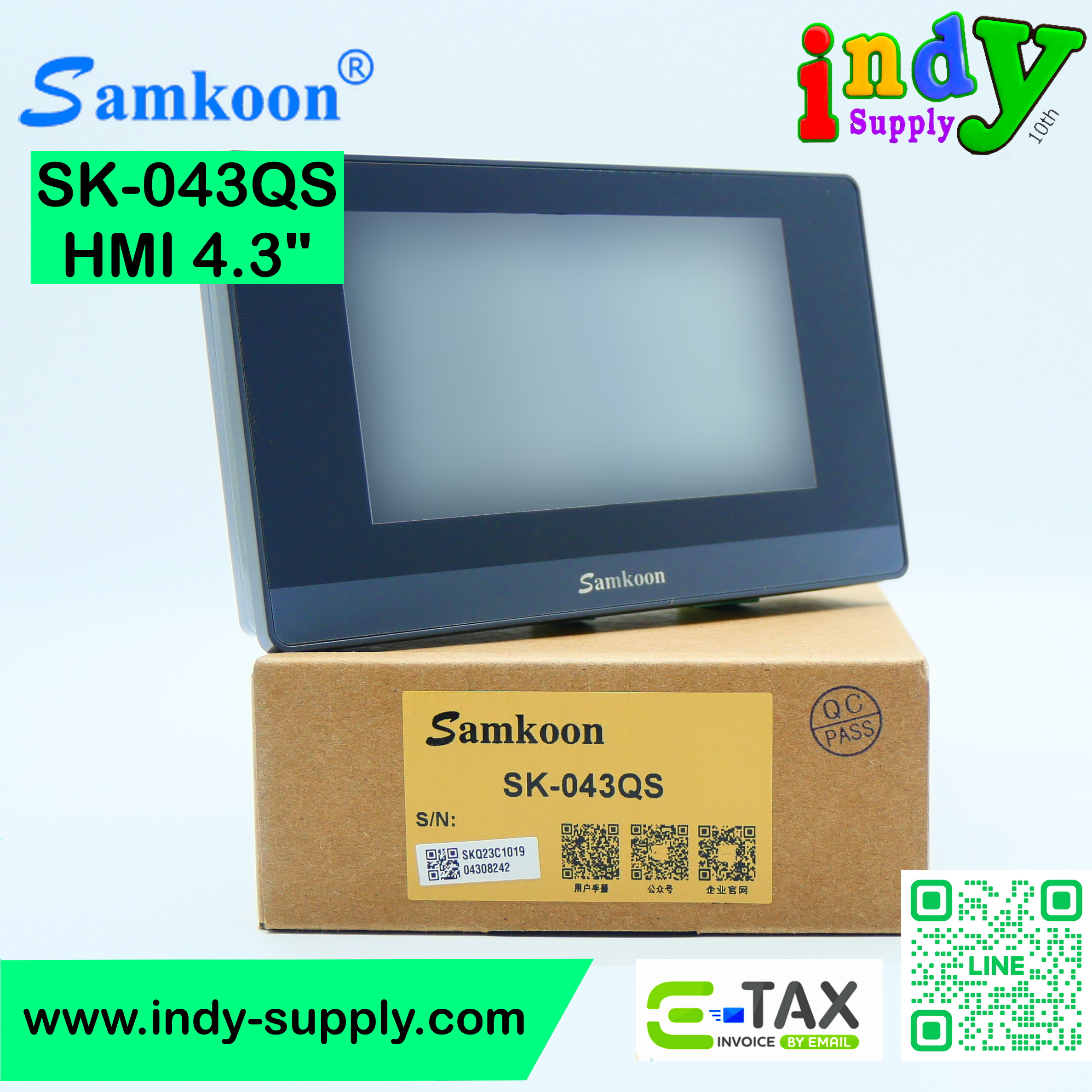

SAMKOON SK-043QS HMI 4.3" (Ethernet)

Structural Specifications:

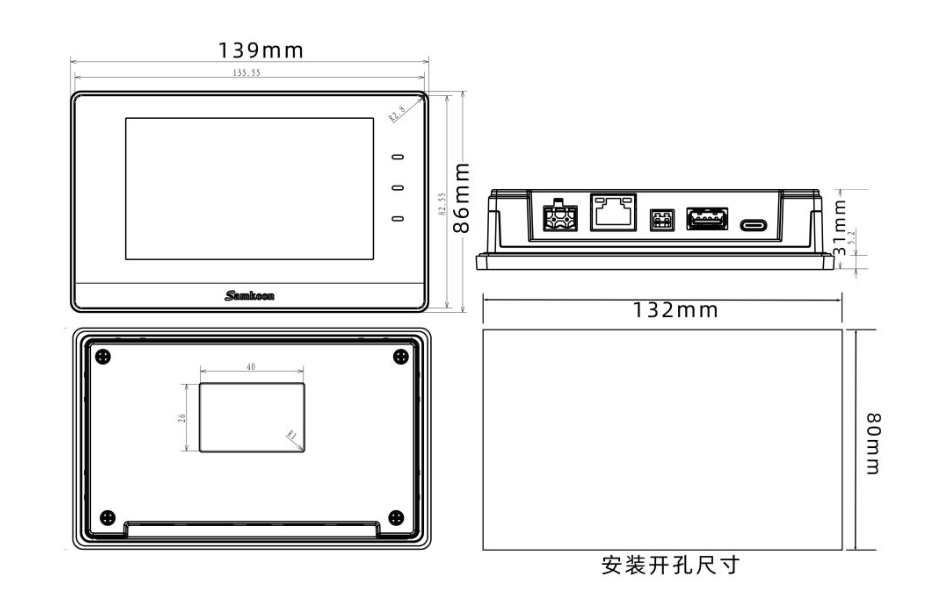

• Dimensions:

  • Size: 139×86×31(mm)
  • Installation Hole: 132×80(mm)
  • Weight: 214g
  • Shell Material: Industrial plastic ABS+PC

• Display:

  • Size: 4.3″ (16:9)
  • Resolution: 480×272
  • Control Panel: 4-port high precision touch pad
  • Color: 16,770,000
  • Backlight: LED
  • Contrast: 400:1
  • Brightness: 400 cd/㎡

• Product Specification/Qualification:

  • Storage: 128MB FLASH + 128MB DDR3
  • CPU: Cortex A7 1GHz, dual-core
  • High-Voltage Insulation Test: 1000V AC, 1 minute
  • Static Test: ±6kV
  • FCC Compatibility: Qualified FCC, Class A
  • CE Qualification: Qualified EN55032 and EN55035
  • Level of Protection: IP65 (front panel)

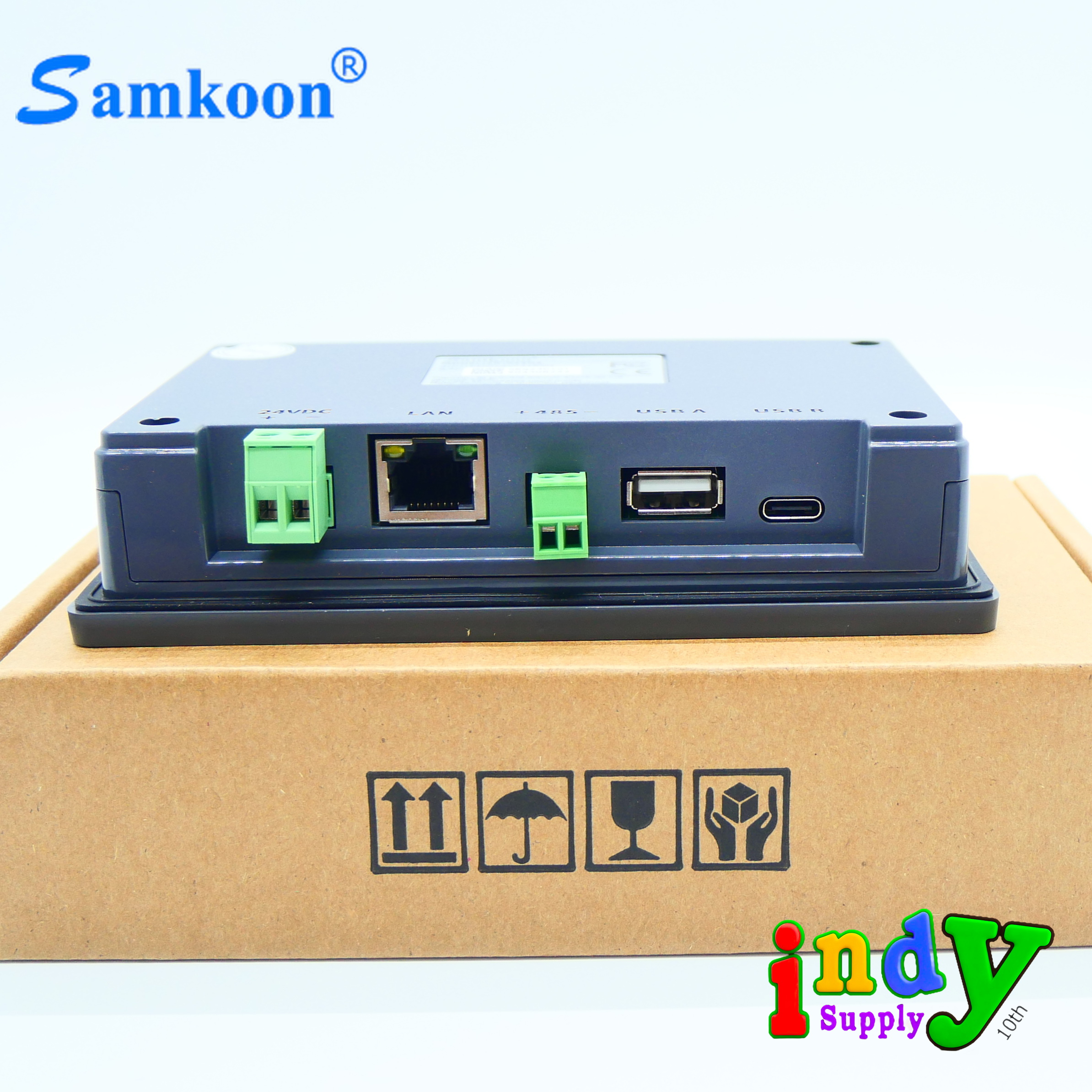

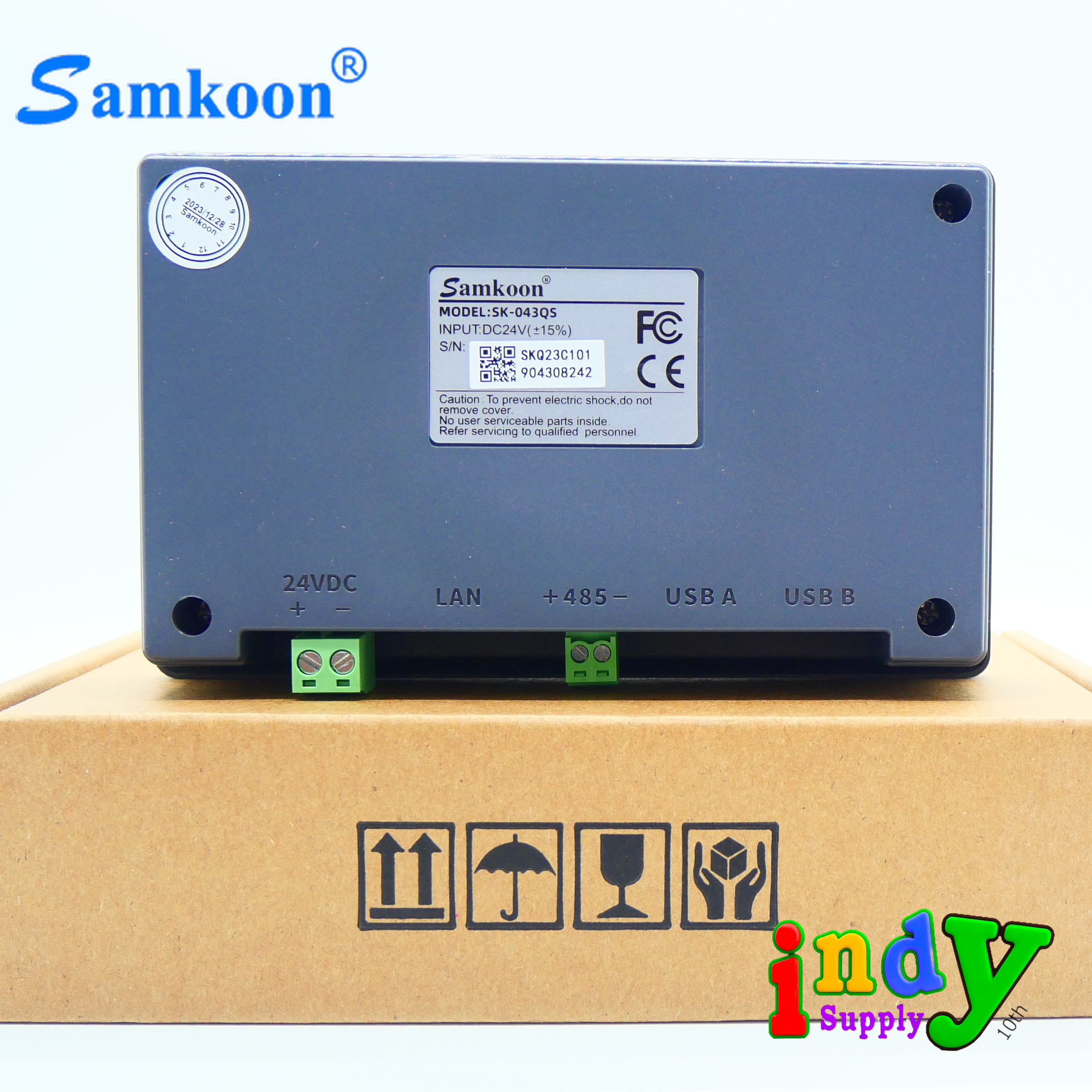

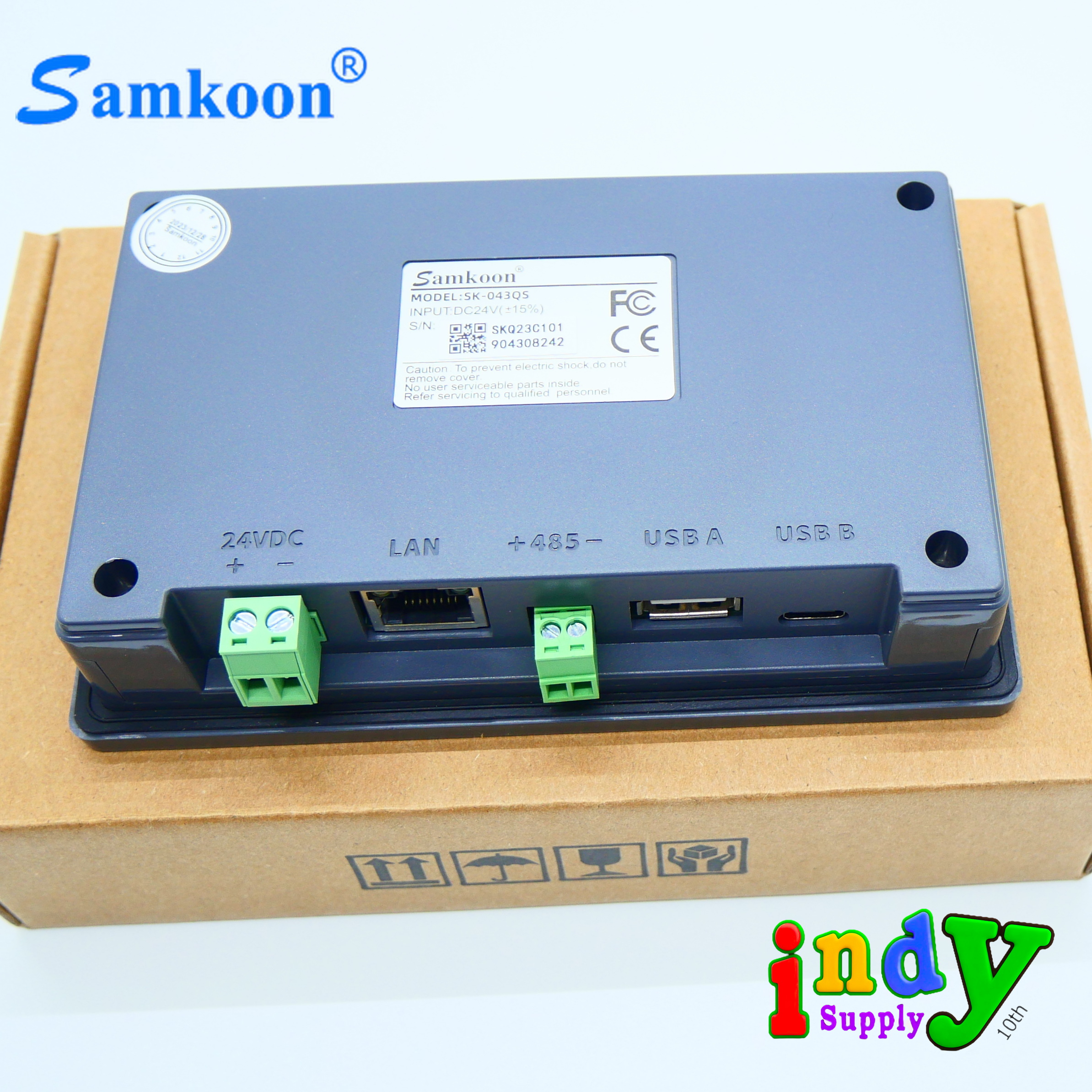

• Power Supply/Port:

  • Power Supply: (DC12~24V) ±15%
  • Power Consumption: 3W
  • Serial Interface: COM1: RS485
  • USB Download: Yes
  • USB Port: Yes
  • Ethernet Port: Yes
  •

• Network Port:

  • Ethernet: Yes
  •

• Environment:

  • Working Environment Temperature: -20°C~55°C (no freeze)
  • Working Environment Humidity: 5~95% RH (condensation)
  • Quakeproof: 10~25HZ (XYZ direction 2G/30 minutes)

• Software:

  • Programming Software: SKTOOL 7.0
