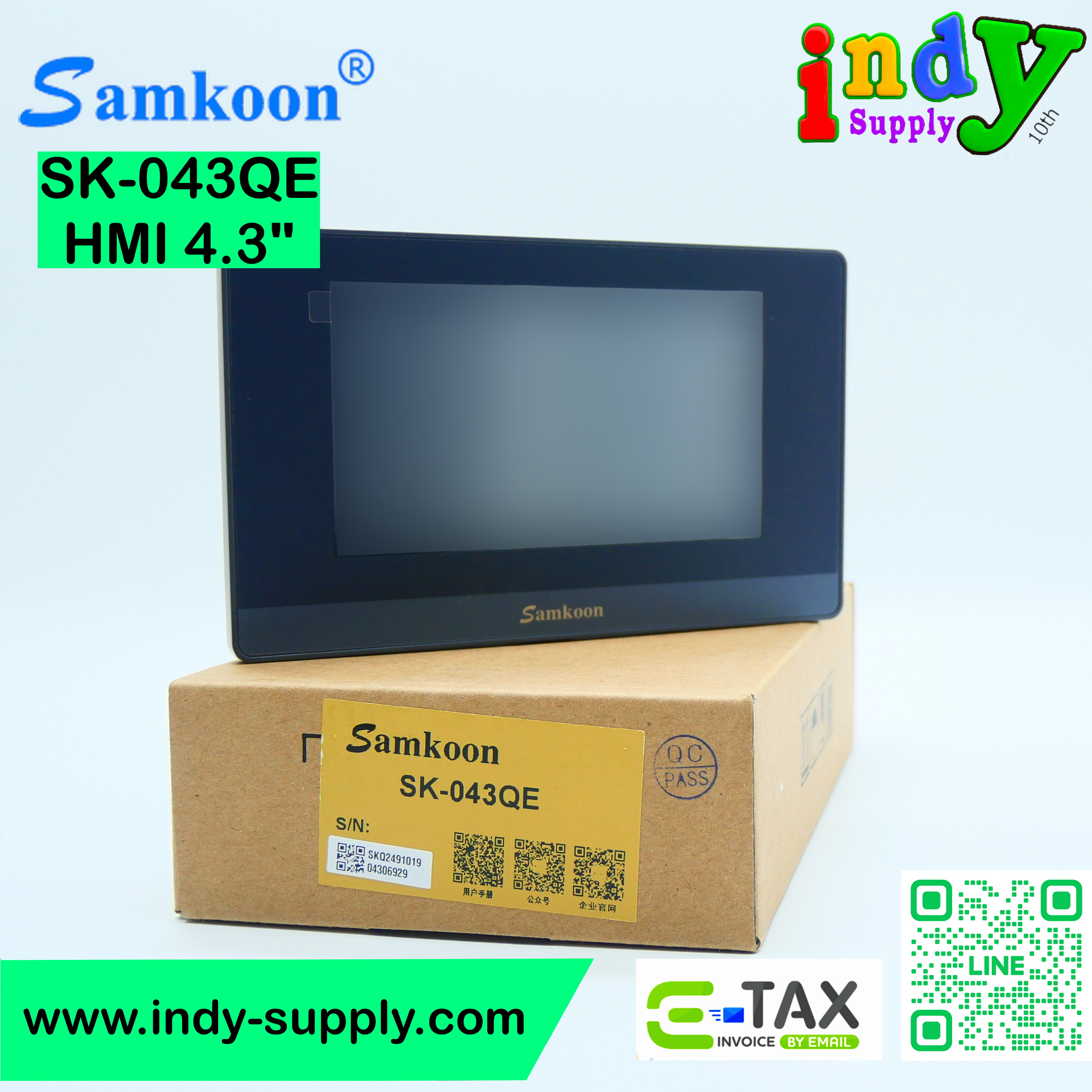

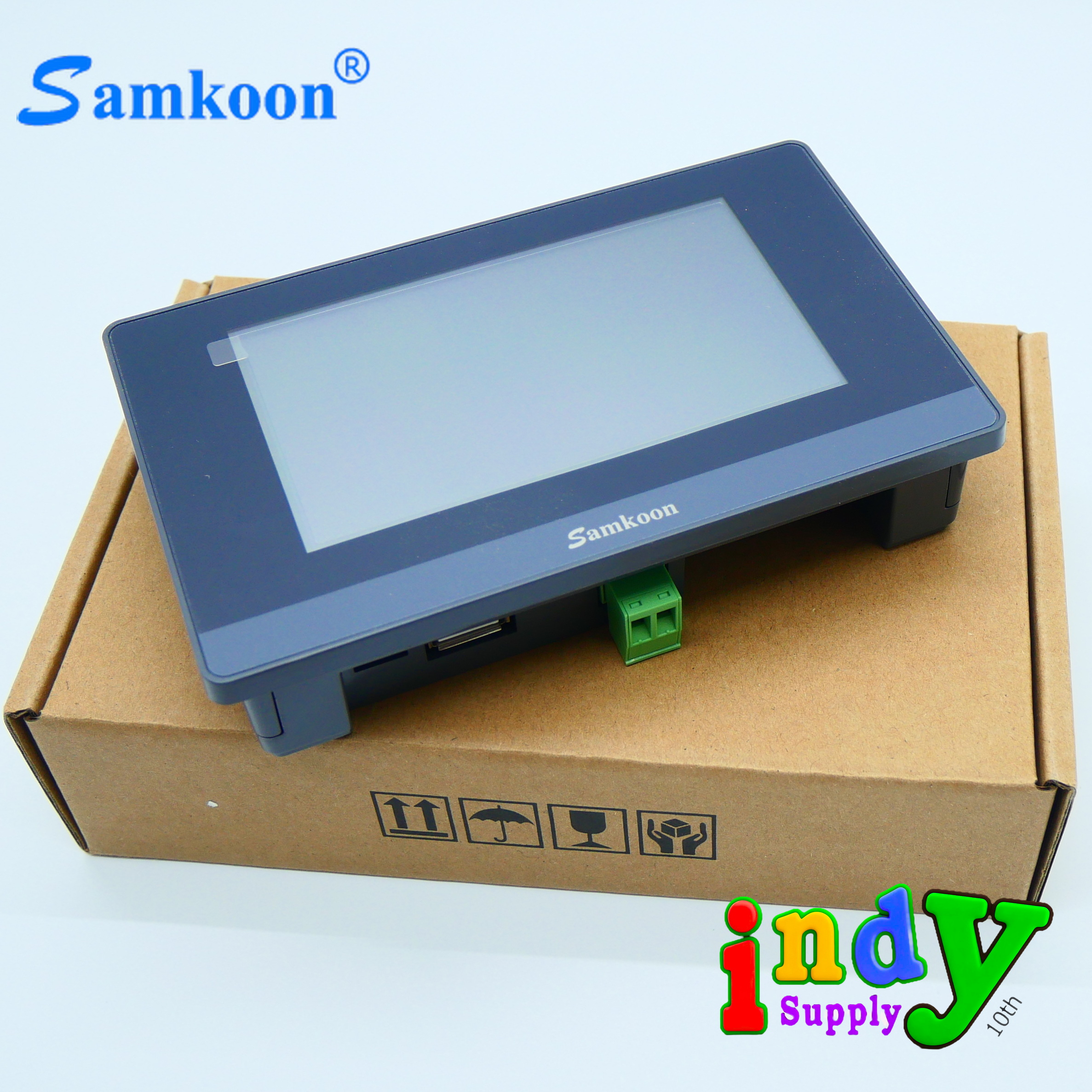

SAMKOON SK-043QE

PRODUCT FEATURES

1. High-strength performance configuration

Based on Linux system, the system is stable, efficient, safe and reliable
Industrial-grade high-performance Cortex A7 processor with a main frequency of up to 1GHz
High capacity 128MB FLASH+128MB DDR3, support external U disk storage
Support HP printers, micro printers

2. Diversified functional modules

Support multiple groups of recipes, multi-window function
Support data collection, data alarm function
Support macros developed based on C language
Support Chinese input
Support more than 300 PLC communication protocols
50 languages supported
Rich features and diverse controls

3. Complete interface embedding

Support a variety of communication methods (232/422/485)
Support USB download, U disk update configuration

4. Brand new password mechanism

Configuration file encryption
Installment payment, HMI protection
Multiple security mechanisms, more secure and reliable

5. Rich color options

Displays 16.77 million true colors

6. Strict quality control

Passed FCC, ClassA, CE certification

PRODUCT PARAMETERS

Structural Specifications

Dimensions: 139 × 86 × 31 (mm)
Installation hole size: 132 × 80 (mm)
Weight: 200g
Shell material: engineering plastic ABS+PC

Display

Display size: 4.3″ (16:9)
Resolution (pixels): 480 × 272
Touch panel: 4-wire high-precision touch panel
Display colors: 16.77 million
Backlight Module: LED
Contrast: 400:1
Brightness (cd/㎡): 400

Product Features/Approvals

Memory: 128MB FLASH+128MB DDR3
CPU: Cortex A7 1GHz. Dual core
Withstand voltage test: 1000V AC, 1 minute
Electrostatic test: Class 4 ±8kV
FCC Compatibility: Compliant with FCC, Class A
CE certification: Complies with EN55032 and EN55035 standards
Protection class: IP65 (front panel)

Power/Interface

Power supply: (DC12~24V)±15%
Power consumption: 3W

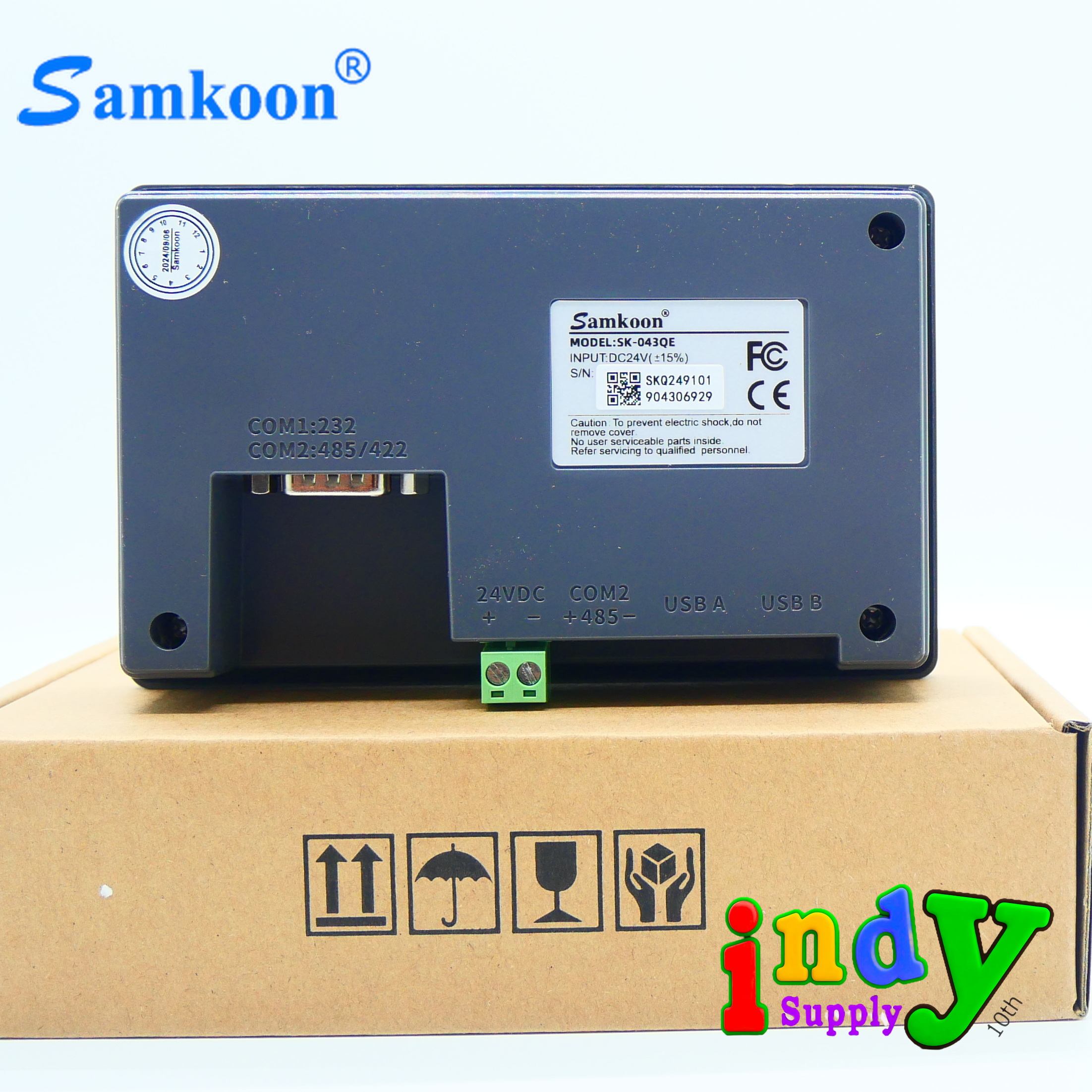

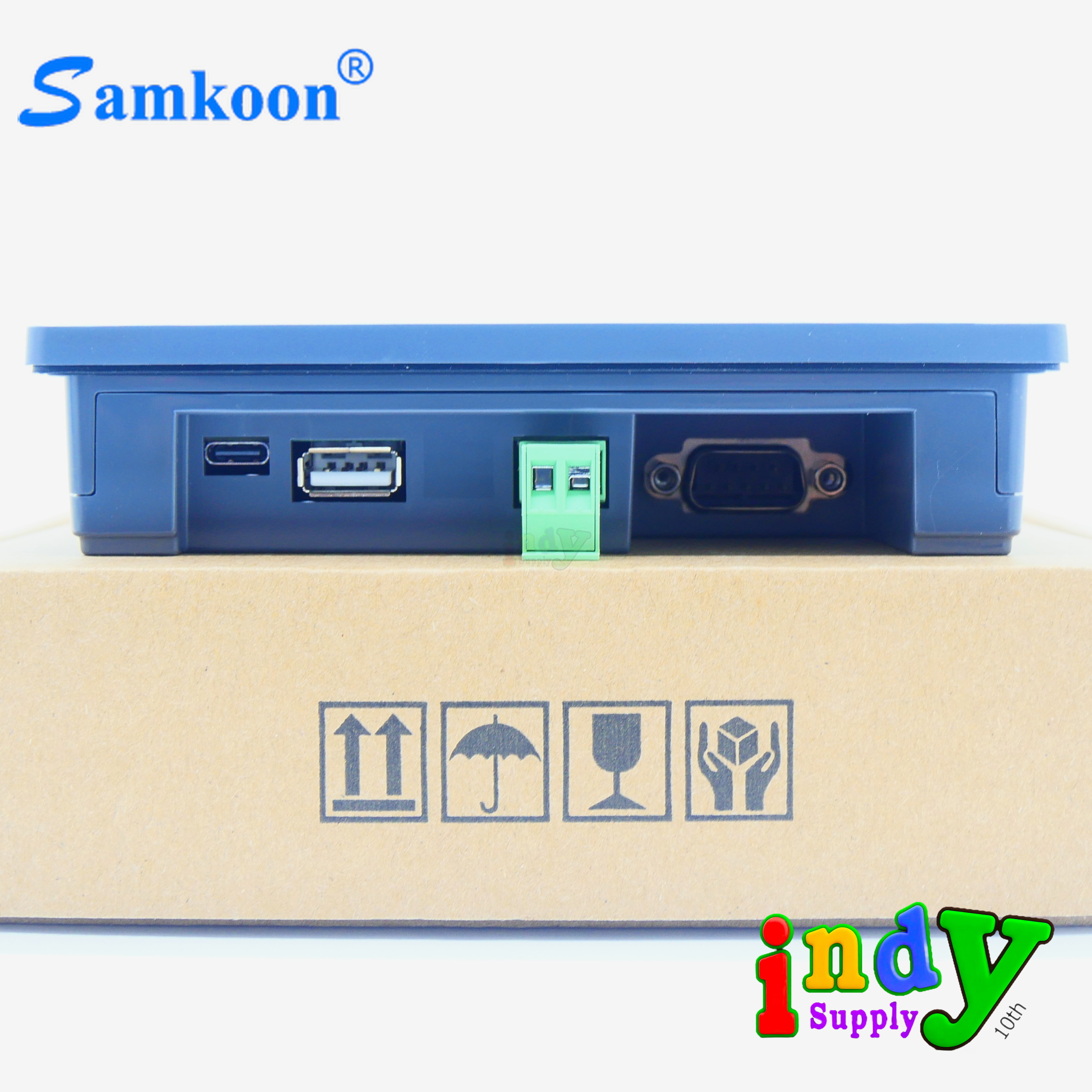

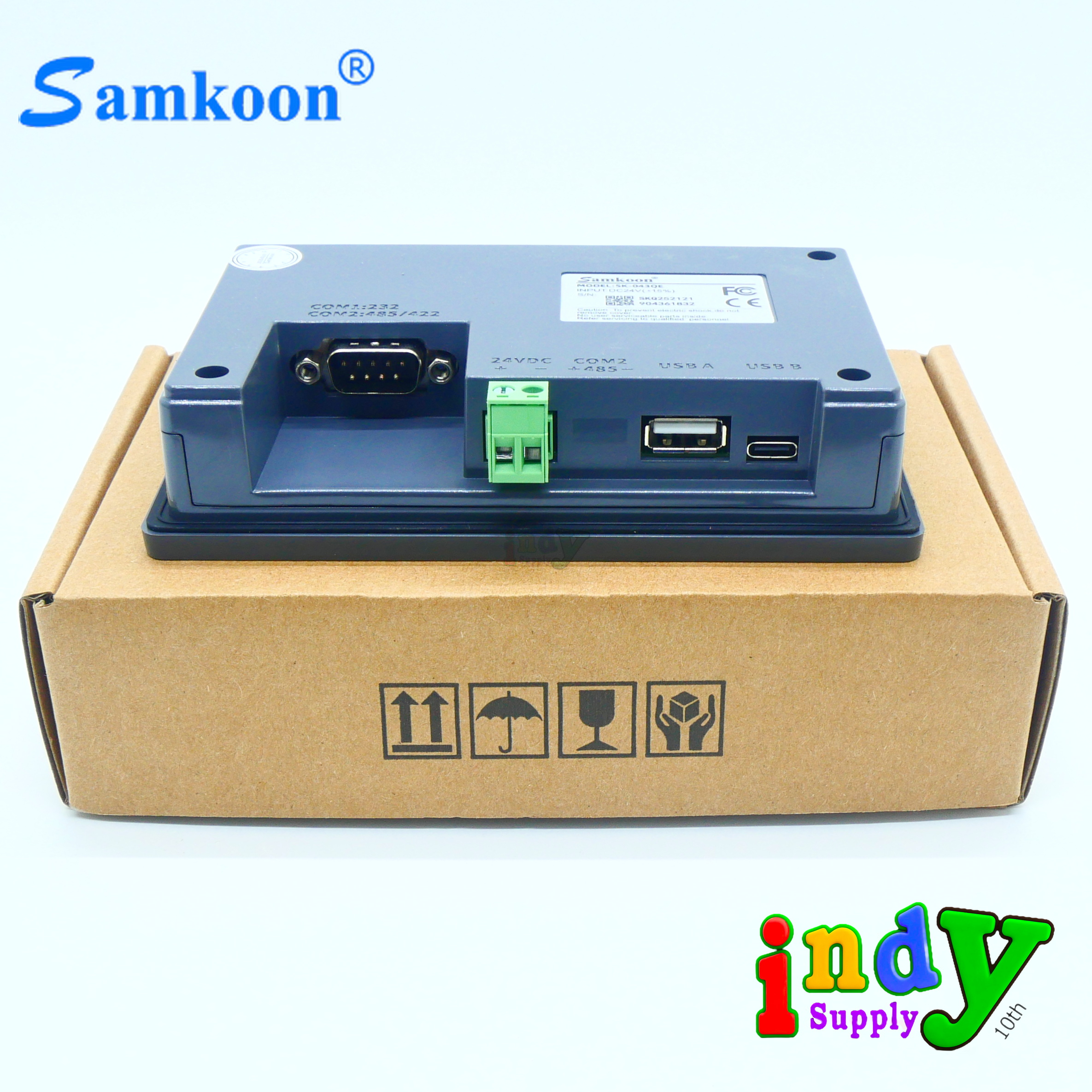

Serial interface: COM1: RS232 COM2: RS485/422
USB download port: YES
U disk port: YES
SD card: NO
Ethernet port: NO
CAN: NO

Internet connection

WiFi: NO
3G: NO
Ethernet: NO
4G: NO

Environment

Working environment temperature: -20°C~55°C (no freezing)
Working environment humidity: 5~95%RH (non-condensing)
Shock resistance: 10 ~ 25HZ (XYZ direction 2G/30 minutes)

Programming software

Programming software: SKTOOL7.0
