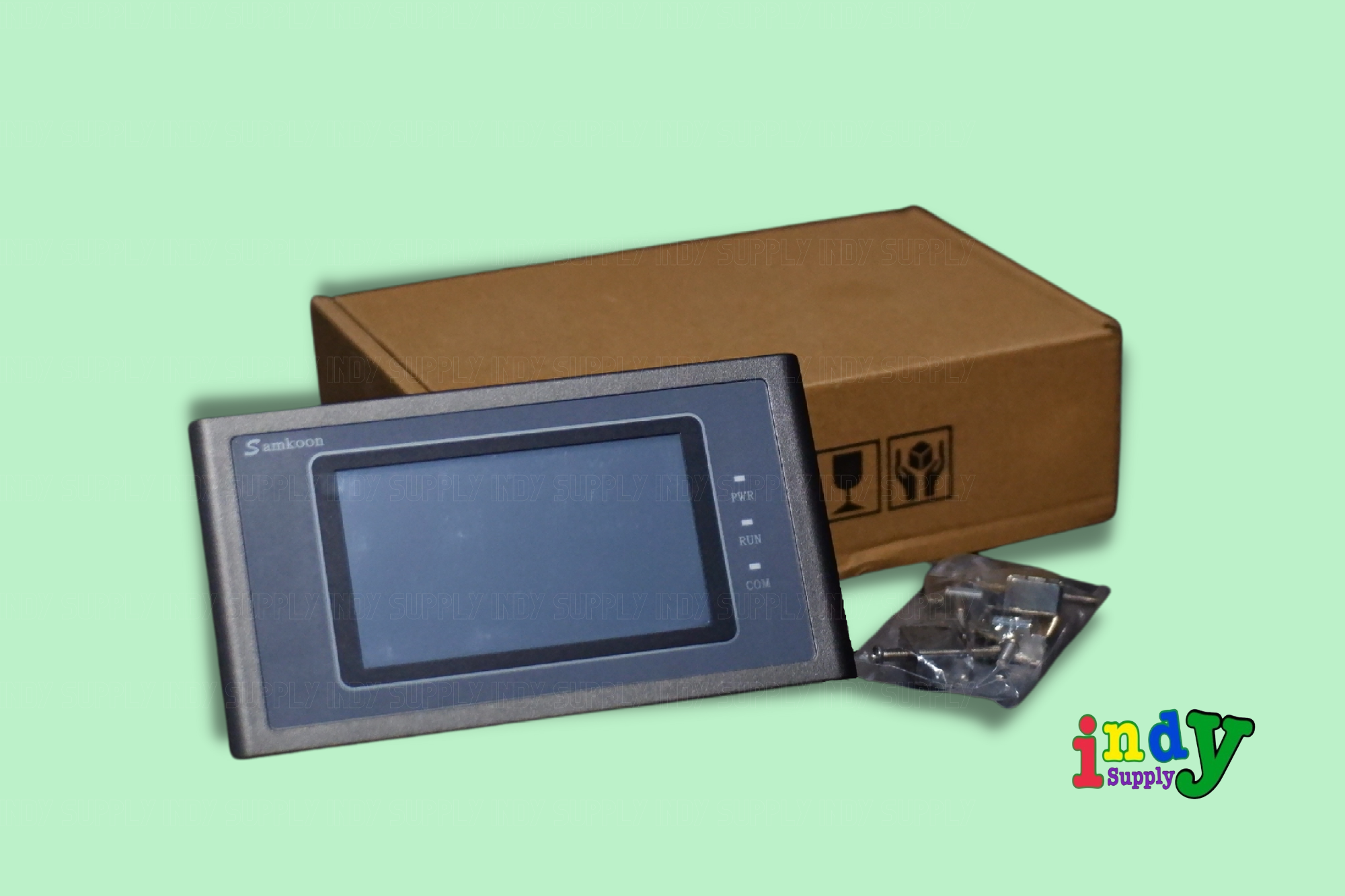

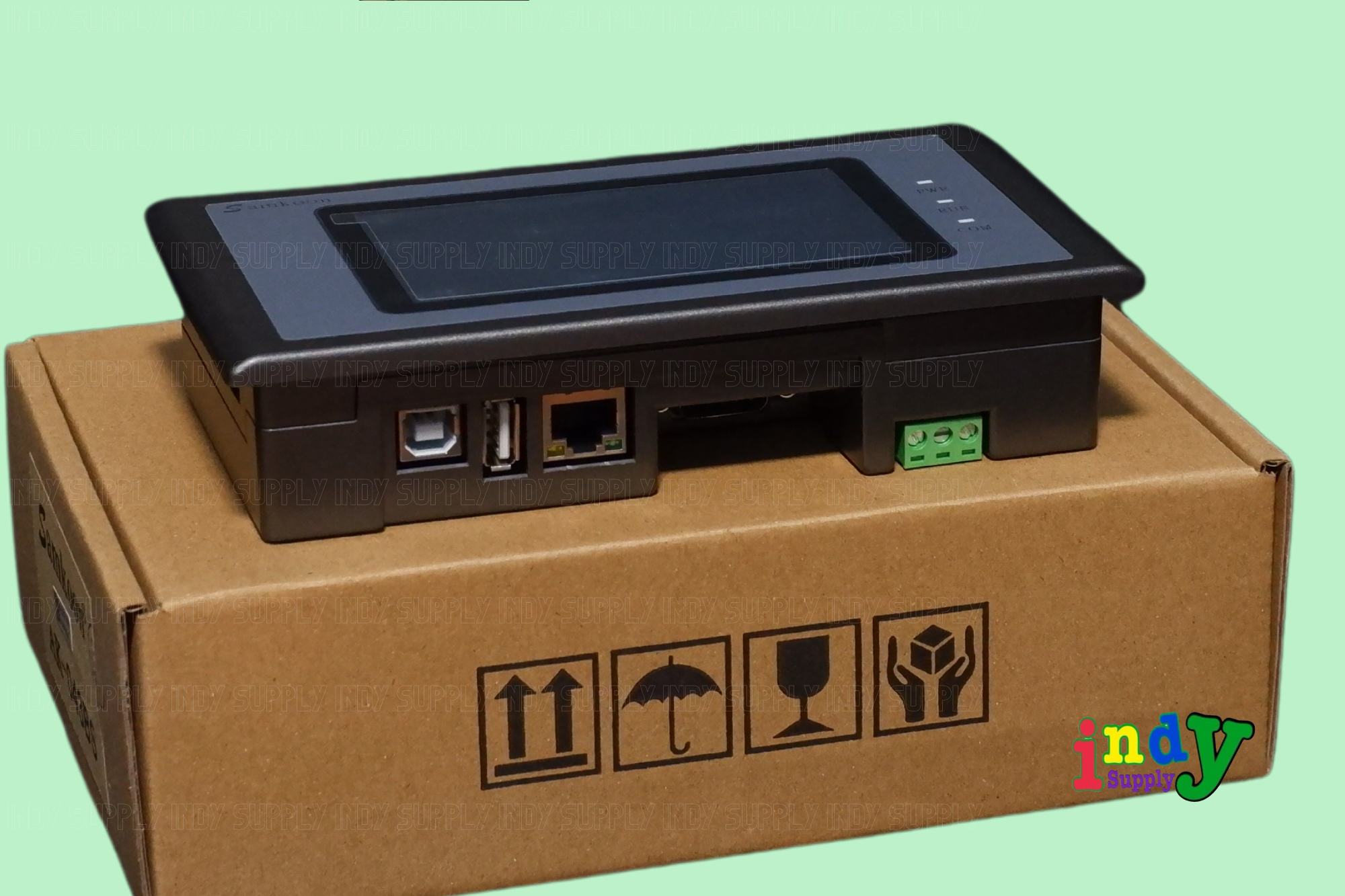

SAMKOON AK-043BS HMI 4.3" (Ethernet)

1. CPU

Adopt contex A8 processor with faster computing speed, less power consumption and more stable operation.

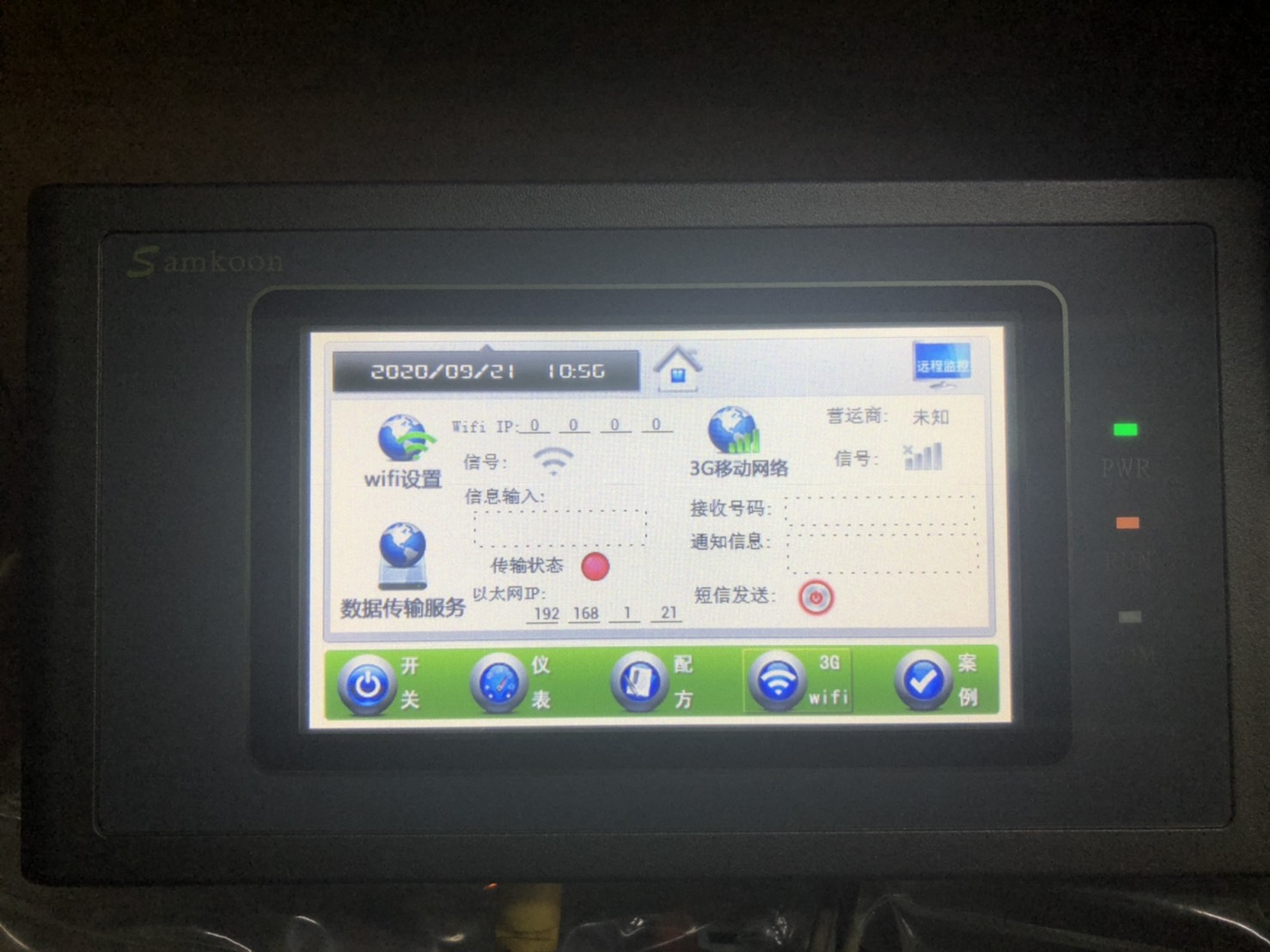

2. Touch pad display unit

   POL8T1.40/STD adopts the 4-wire resistive touch pad, and POL8T1.70/STD,POL8T1.80/STD adopt 5-wire resistive touch pad, which are of accurate touch precision, durable and of long touch life. The display screen is TFT LCD, 260,000 color TFT display.

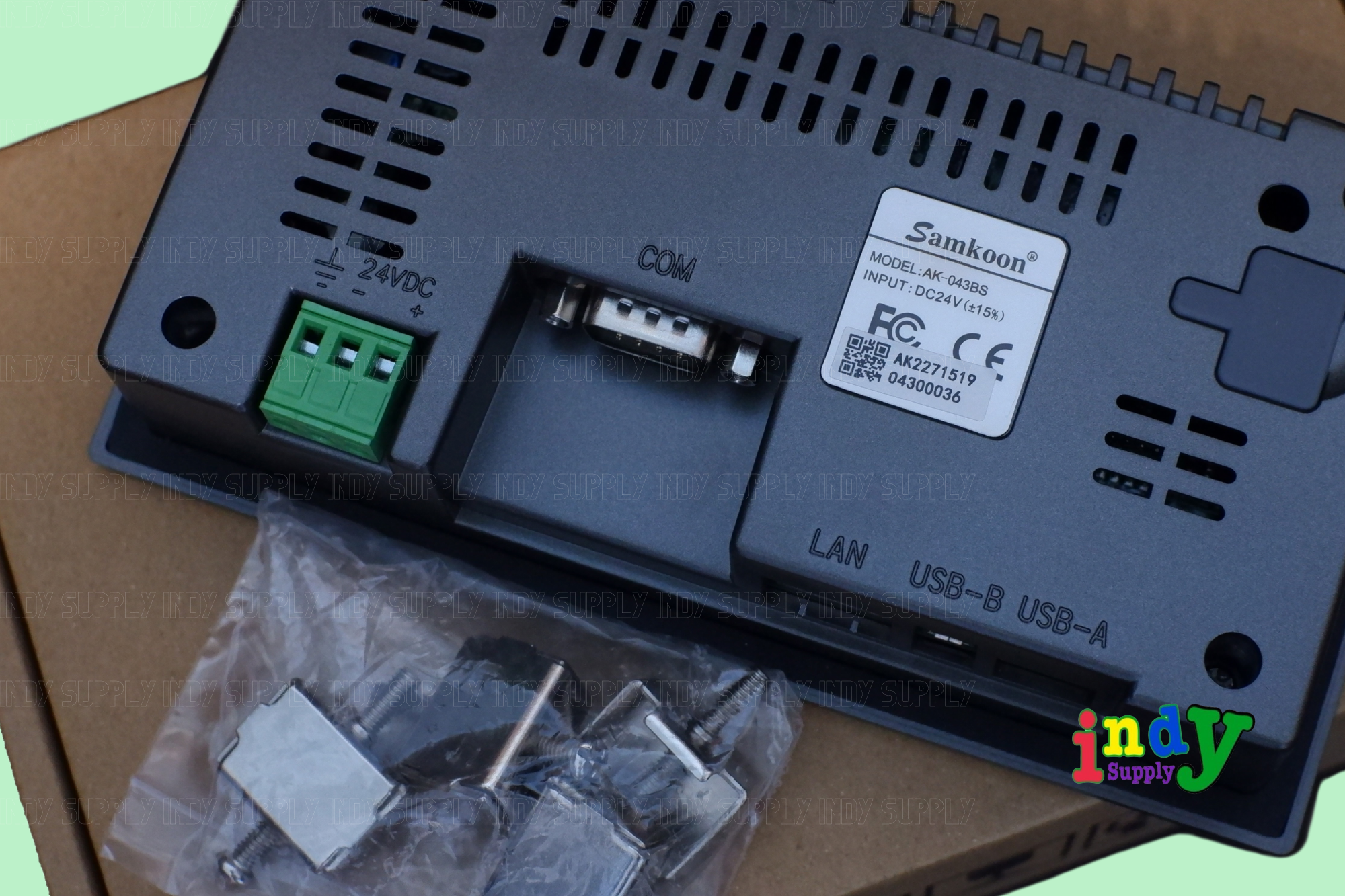

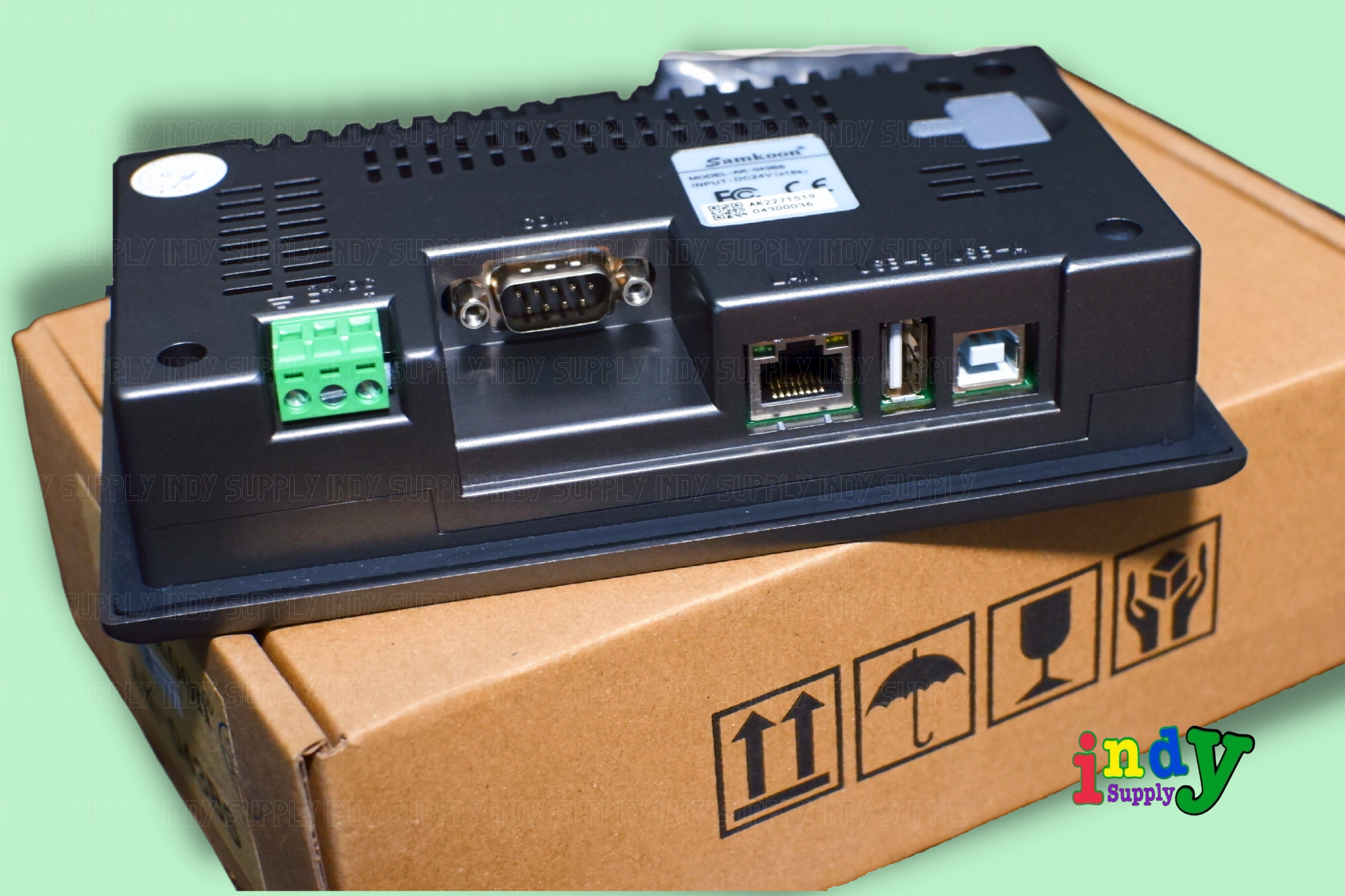

3. Communication module

    It adopts the design of anti-interference, anti-high-voltage and lightning strike, strengthens communication accuracy and reliability, and supports RS232, 485 and 422 serial port communications.

4. Storage unit

    The FLASH with hold during power off shall be taken as ROM, the access speed is fast, and the capacity of all models reaches 256M;

5. Power module

Adopt high-precision switch stabilized voltage supply with small power consumption.
