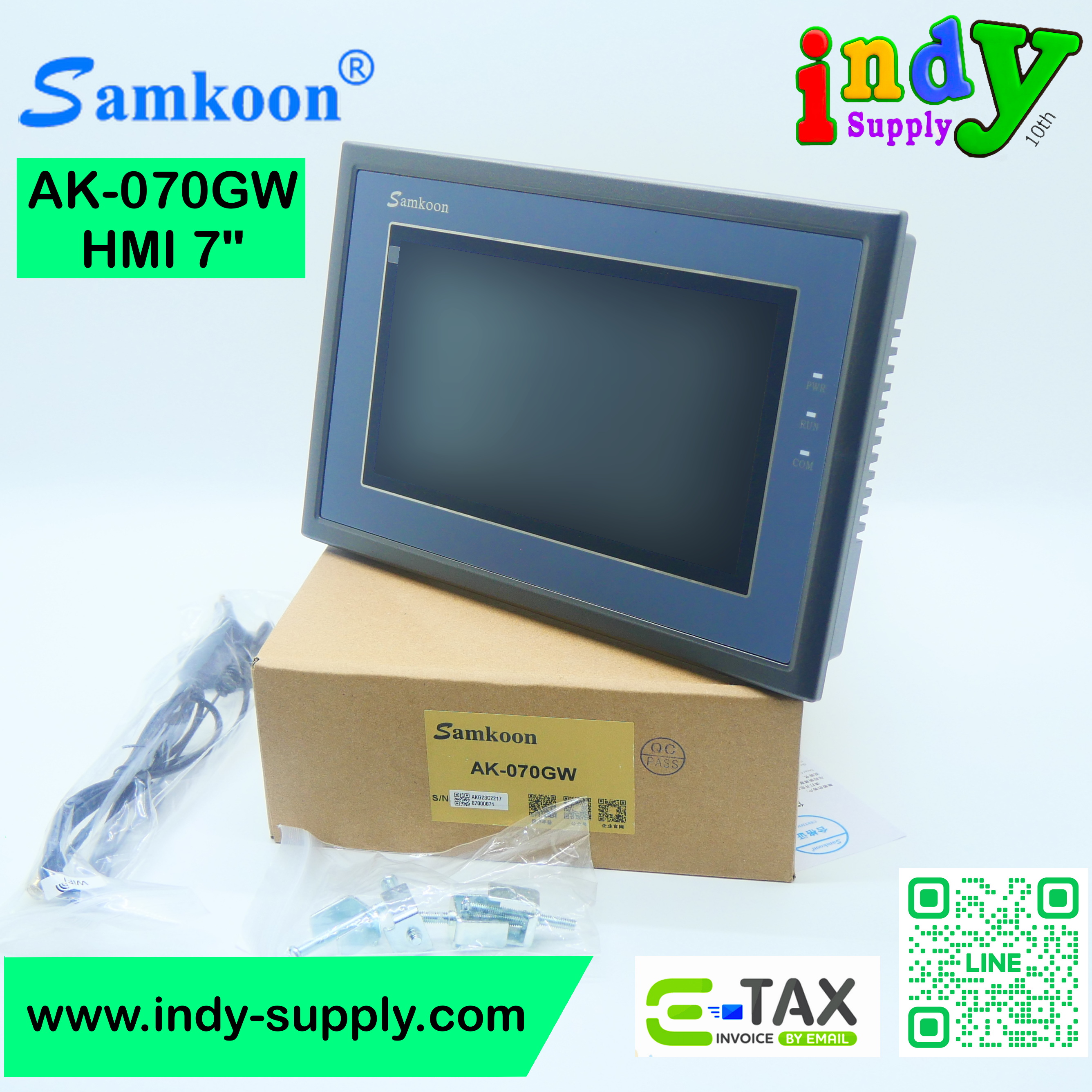

SAMKOON AK-070GW HMI 7" (wifi + LAN)

*ราคายังไม่รวมภาษี, ขอใบเสนอราคาไลน์ @indy-supply

Based on Android system

● Based on the Android4.0.3 Platform, the interface is friendlier and provides a better user experience.
● Slide to switch screens; support various styles of popup effects.
● Efficient security mechanism inbuilt to protect your development achievement.
● Provide two USB ports: USB-A and USB-B for U disk, mouse and other USB devices.
● 10M/100M adaptive network card ensures quick communication via network between HMI and other devices.
High-end configuration：
● Industrial-level high-performance Processor of Cortex A8, up to 800MHZ.
● Higher-capacity FLASH; SD card and U disk supports.
Communication：
● Realize real-time, stable communication; support perfectly Multi-protocol communication via one serial port; adaptive to communication of multiplex control equipment.
● “Mail” allows sending text, historical data, alarm data, formula data, etc.
● “Text” allows sending alarm information, receiving texts and modifying operating parameter of HMI.
● “ERP” allows docking with ERP system, mainly through the standard language of SQL.
● “Web” enables uploading HMI data to the Web server and downloading Web data to the HMI with the protocol of HTTP.
● “Remote Database” enables communication, data exchange and uploading between HMI and remote database server.
Remote service：
● Support remote downloading of PLC program, remote monitoring of machine status and remote updating programs.
PC Tool / PC software：
● Easy to operate; rich functions.
Recipe：
● Support exporting and importing Recipe files (.csv) via U disk or SD card; support controlling Recipe data transmission through PLC.
Historical data：
● Based on database; high capacity; quick query and reading.
Alarm：
● Powerful alarm functions; multiple sets of alarms; rich triggering conditions.
Scripts：
● Abundant built-in functions.
● Based on Java language for a good expandability; compatible with Java API, Android API and third-party Jar importing.
Communication：
● Serial ports (232/422/485); Canbus; Network (Ethernet, Wi-Fi, 3G).
Input methods：
● Compatible with Chinese input to facilitate domestic developers.
Printer：
● Compatible with printer connected via serial port.
Color：
● 16,77 million colors (vivid colors).

โปรแกรมต่างๆที่ใช้งาน
DOWNLOAD

 Android

การสั่งงานผ่านเว็บเบราว์เซอร์หรือแอปพลิเคชั่นบนมือถือต้อง registerผู้ใช้งานและ register Serial number ของจอที่
เว็บไซต์>> www.samkoonyun.com
