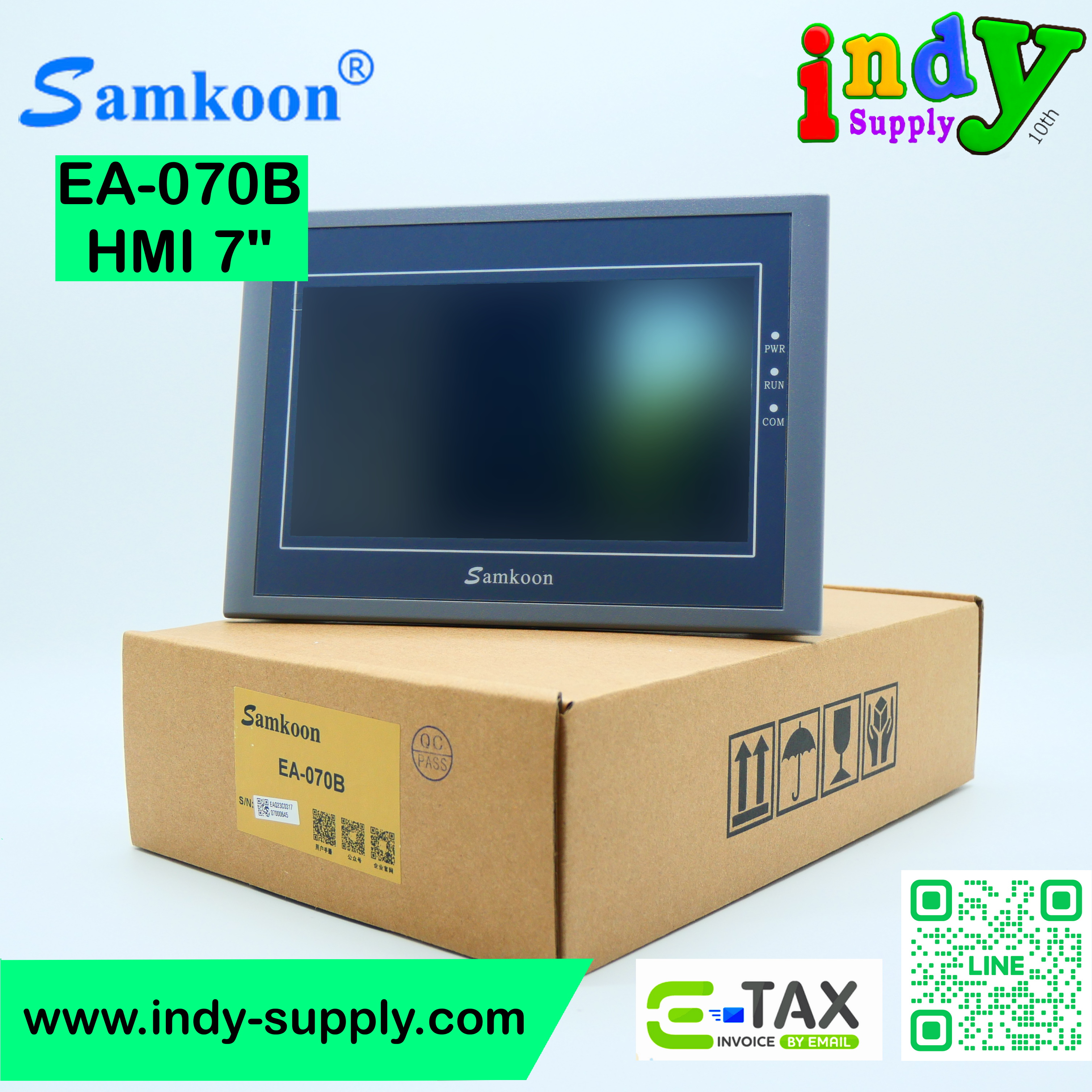

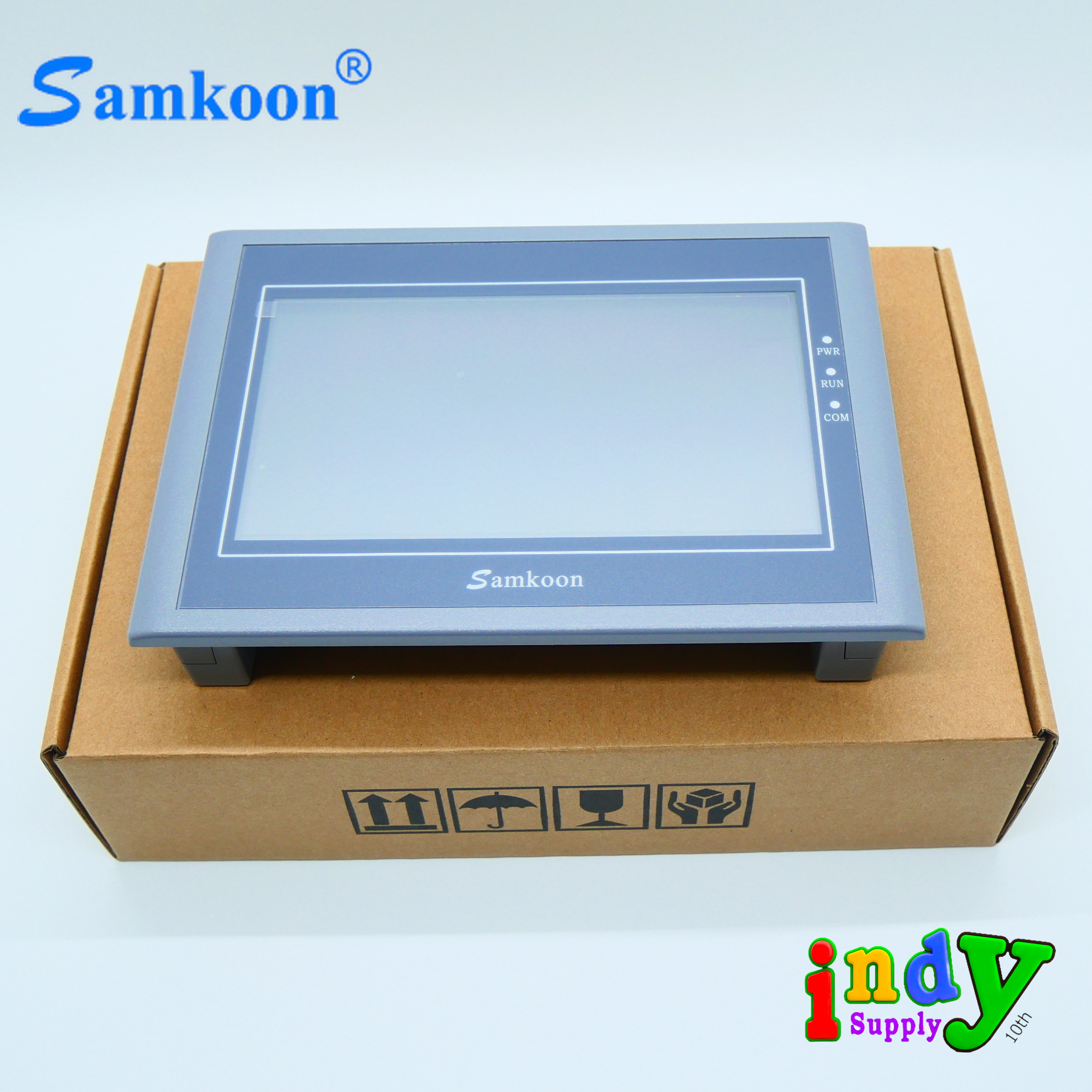

SAMKOON EA-070B touch screen 7-inch

*ราคายังไม่รวมภาษี, ขอใบเสนอราคาไลน์ @indy-supply


รายละเอียดของรุ่นEA-070B

1. HMI features：

SA Series HMI of Samkoon is a high-quality human machine interface product, integrating 32-bit CPU unit, input and output unit, display, memory and other module units with small power dissipation and temperature rise. Having passed EN50022&EN50024, FCC Class A, it can be widely applied in industrial control systems of all sectors of industry.

On the basis of the previous version, SATOOL makes great improvements with a faster boot time, higher page switching speed, higher communication speed, and higher sensitivity than before.

The following is an introduction of module features:

1. CPU unit

Adopt 32-bit micro-processor ensuring faster operation speed, less power dissipation as well as more stable operating.

2. Touch tablet display unit

EA/SA HMI employ a four-wire resistive touch tablet responsible for a better touch precision and a long life of touch. The display is TFT LCD with 2, 6 million color TFT.

3. Communication module

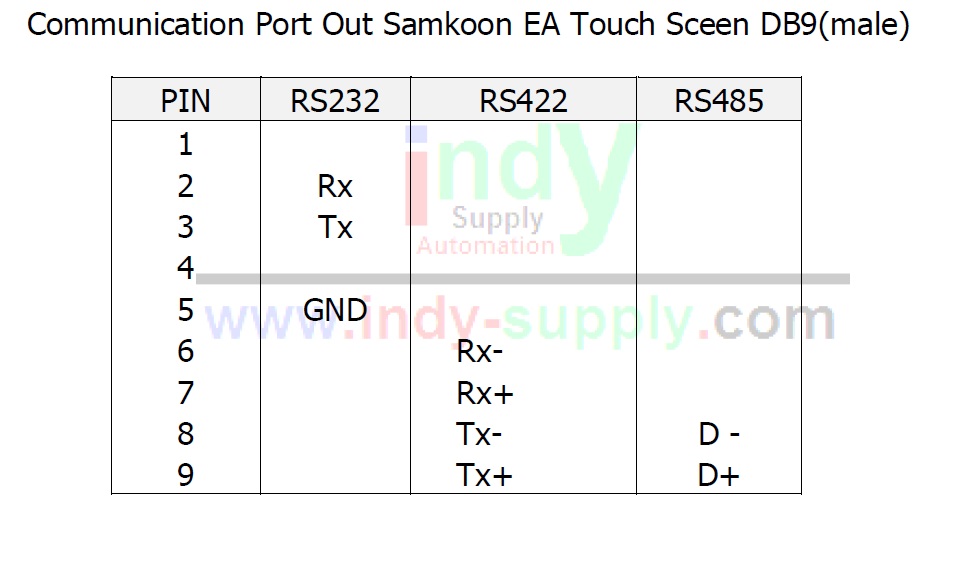

Design of anti-jamming, anti-hypertension and anti-lightning enhances the accuracy and reliability of communication. Support for RS232, 485, 422 communication modes.

4. Storage cell

Employ the Flash memory of preservation as ROM; Available for a fast access speed; Capacity of all models reaches to 128M.

32M for EA-043A，EA-035A-T，EA-070B

128M for SA-043F，SA-035F，SA-050H，SA-057F，SA-070F，SA-070H，SA-102H，SA-104F，SA-121F

5. Power module

Inclusion of high-precision switching and regulated power supply; Low power consumption.
